Spartan 3E starter kit logic analyzer
I needed to capture some logic signals for viewing but unfortunately didn’t have a separate logic analyzer available for that. Then I remembered seeing a logic analyzer project for the Xilinx Spartan 3 starter kit by Michael Poppitz. Jonas Diemer has also made a port of the project to the Spartan 3E starter kit.

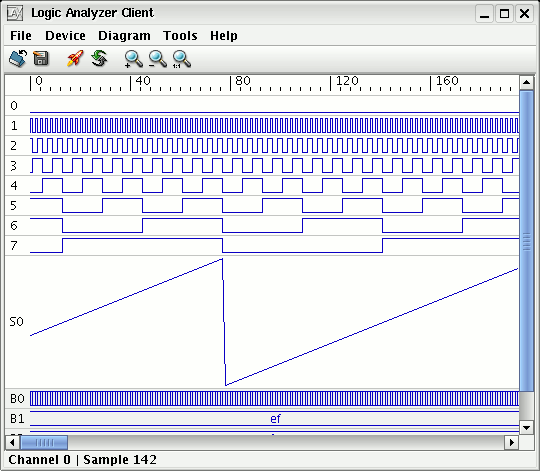

There is a very nice Java client software that has also been getting some additional features as contributions. Also looks like the VHDL code for the FPGA has been re-structured in the recent versions making porting to different platforms easier.

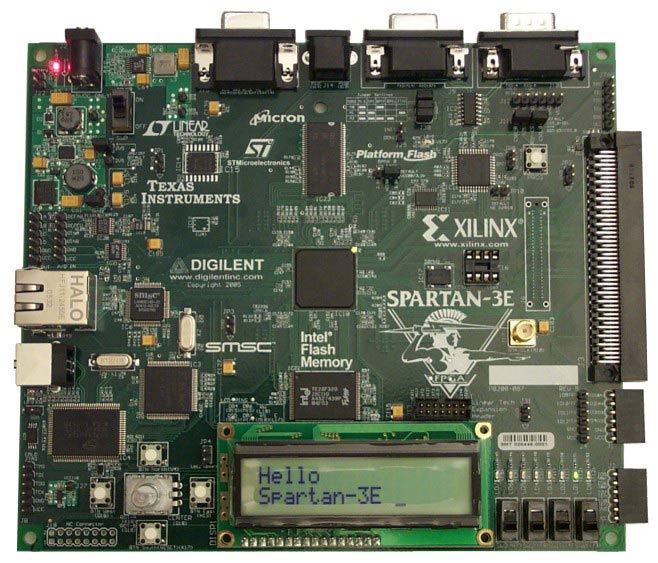

Getting it running with my Spartan 3E starter kit was pretty simple thanks to the existing port for this board. This port comes only as source so it takes a little additional time to compile it to binaries so I’ll provide the binary files here in case someone wishes to quickly test it on the Spartan 3E starter kit board.
FPGA bit file was made using ISE 9.2.02i and JAR package compiled using jdk1.6.0_02
Next on the list would be making an input board for wider input voltage range.
