Features

  • Uses screens to show information on LCD
  • Background bitmap for each screen can be changed
  • Information shown and it's placement in each screen can be configured
  • Update interval can be changed
  • Time between screen changes is configurable
  • Winamp screen can be skipped if Winamp isn't running
  • Configured screens can be disabled
Supported sources for information
  • Motherboard Monitor 5.1.9.1
  • Winamp
  • Seti@Home
  • Pop3 mail check
  • Date
  • Time
  • Computer name
  • Memory statistics
  • Uptime
  • NT Performance Counters
  • System Battery Status
  • Disksize
  • Diskfree
  • Drivetype
Other
  • Supports T6963C and KS0108 based displays
  • Supports two different wiring schematics for T6963C:
    0 = original
    1 = wiring used at gathering.tweakers.net
  • CheckBusyFlag On/Off for T6963C
Features planned
  • Support for more display sizes
  • Support for more controllers
  • Counterstrike stats
  • Suggest a feature
Variables available
VariableDescriptionSizeAlignment
mbmtemp(nro)mbmtemp(0), mbmtemp(1) ...N/A
mbmvolt(nro)mbmvolt(0), mbmvolt(1)...4
mbmfan(nro)mbmfan(0), mbmfan(1)...N/A
mbmmhzCPU MhzN/A
mbmusage(processor)CPU Usage mbmusage(0), ...N/A
uptimedUptime days2
uptimehUptime hours2
uptimemUptime minutes2
uptimesUptime seconds2
memtotphysMem Physical, TotalN/A
memavphysMem Physical, AvailableN/A
memusageMem usage %N/A
memtotpagePagefile TotalN/A
memavpagePagefile AvailableN/A
memtotvirtVirtual TotalN/A
memavvirtVirtual AvailableN/A
computernameName of the computerN/A
mailcountPop3 mailcountN/A
winampstatusWinamp status playing, paused, stoppedN/A
winamptrackposWinamp track positionN/A
winamptracklenWinamp track lengthN/A
winamptitleWinamp titleN/A
winampsamplerateWinamp sample rateN/A
winampbitrateWinamp bitrateN/A
winampchannelsWinamp channels, Stereo/MonoN/A
setiprogSeti progress4L
setiuserUser nameN/A
setinresultsResults6L
setitotal_cpuTotal CPU Time YearsN/A
setispikeSpikes2
setigaussianGaussians2
setipulsePulses2
setitripletTriplets2
weekdayName of the weekday11L
dateDate10L
timeTime8L
omaipIPN/A
bat_aclineSystem Battery Status - Online/Offline
bat_chargeHigh/Low/Critical/Charging/No Battery
bat_lifepercentPercent battery life remaining
bat_lifetimeBattery lifetime remaining
bat_fulllifetimeFull battery lifetime
winverwinnt/win9x
diskfree(path)usage: diskfree(c:\)
disksize(path)usage: disksize(c:\)
drivetype(path)Removable/Fixed/Remote/CDROM/RamDisk/Unknown
Example of LCDINFO.INI
[Port]
Base=0x378
Wiring=0
CheckBusyFlag=0

[PDH]
Enable=1

[Pop3]
Enable=0
Update=600000
Host=
UserID=
Password=

[Seti@Home]
Interval=60000
Enable=0
Statedir=s:/seti/state.sah
Userinfodir=s:/seti/user_info.sah
Outfiledir=s:/seti/outfile.sah

[Weekdays]
0=Sunday
1=Monday
2=Tuesday
3=Wednesday
4=Thursday
5=Friday
6=Saturday

[SkipScreen]
Enable=1
;if winamp isn't running which screen to skip
NoWinamp=1

[Screens]
Update=1000

[Screen0]
Enable=1
Interval=5000
Icon0=
Icon1=
Icon2=
Icon3=
Icon4=
Line0="$pdh_processor$"
Line1="     : $mbmtemp(0)$c"
Line2="     : $mbmtemp(1)$c"
Line3=
Line4=
Line5="     : $mbmvolt(0)$V     +12V : $mbmvolt(4)$V"
Line6="     : $mbmvolt(2)$V     + 5V : $mbmvolt(3)$V"
Line7=

[Screen1]
Enable=1
Interval=5000
Icon0=winamp(6,14)
Icon1=
Icon2=
Icon3=
Icon4=
Line0=
Line1="                [$winampsamplerate$kHz at $winampbitrate$kb/s]"
Line2="                [$winampchannels$]"
Line3=" [ $winampstatus$ ]"
Line4=" [ $winamptrackpos$ / $winamptracklen$ ]"
Line5=" [ $winamptitle$ ]"
Line6=
Line7=

[Screen2]
Enable=1
Interval=5000
Icon0=
Icon1=
Icon2=
Icon3=
Icon4=
Line0=
Line1=" [$computername$]      [$omaip$]"
Line2=
Line3=" 1400@$mbmmhz$ Mhz   $memusage$% Memory Used"
Line4=
Line5=" Free Phys: $memavphys$ / $memtotphys$  "
Line6=" Uptime   : $uptimed$ Days $uptimeh$ Hr $uptimem$ Min $uptimes$ Sec"
Line7=

[Screen3]
Enable=1
Interval=5000
Icon0=
Icon1=
Icon2=
Icon3=
Icon4=
Line0=
Line1="             $setiuser$"
Line2=" [  $setiprog$%  ] Total WU's : $setinresults$"
Line3=" [Completed] Total time : $setitotal_cpu$yrs"
Line4=
Line5="     Spikes : $setispike$    Gaussians : $setigaussian$"
Line6="     Pulses : $setipulse$    Triplets  : $setitriplet$"
Line7=

[Screen4]
Enable=1
Interval=5000
Icon0=
Icon1=
Icon2=
Icon3=
Icon4=
Line0=
Line1=" [$weekday$ $date$ $time$]"
Line2=
Line3=
Line4=
Line5="       You've got $mailcount$ mail(s) "
Line6=
Line7=

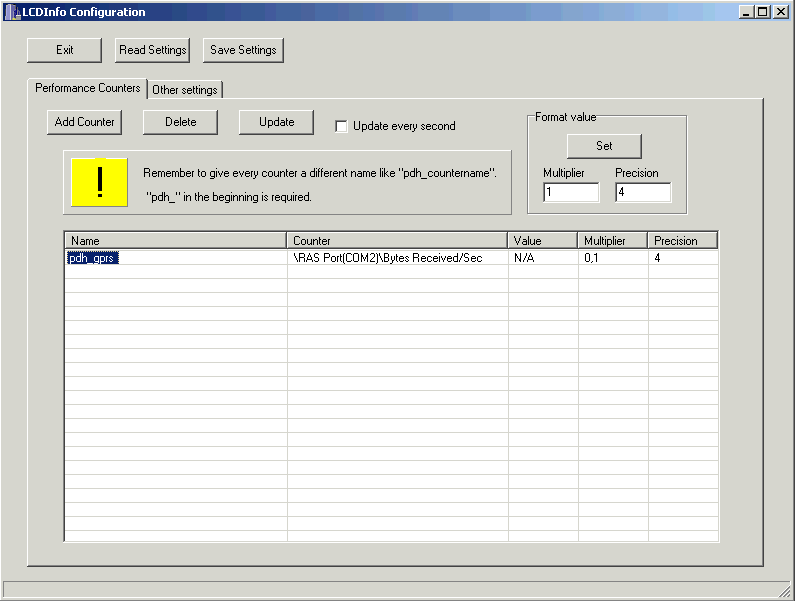

Screenshots
