Things available for sale.

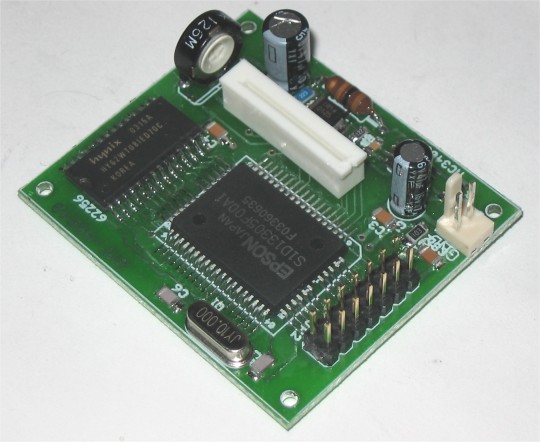

S1D13305 LCD controller
Board includes a DC/DC converter for generating the negative voltage
needed by the displays. Also it has a 14 pin 1.25 mm pitch FFC
connector for connecting a display with FFC cable. Board can be also
assembled without FFC connector for connecting to displays not using
the FFC cable. Also available is a version with a 12 pin FFC connector.
DMF-50840 and LM32007T versions.
DMF-50840 version is compatible with many QVGA panels that have the same pinout and connector.
320x240 LCD displays
LM32007T - white on blue

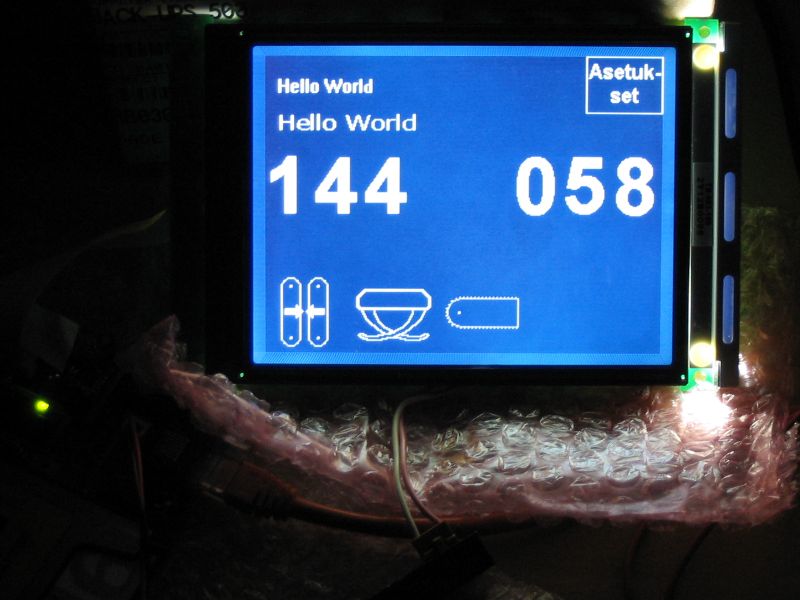

DG320240 (pictures in the
ADS Graphics Client Plus section below)
All are unused displays still in factory packaging
Display + S1D13305 controller 65 €
Full assembled package for PC parallel port also possible

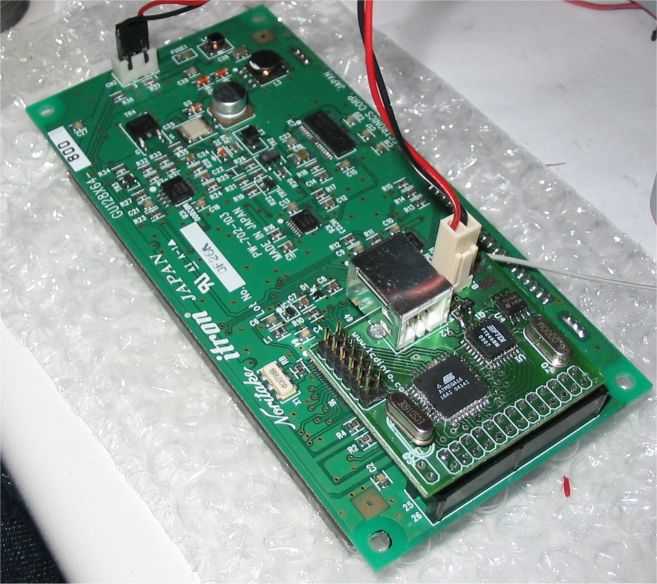

Noritake VFD USB interface board

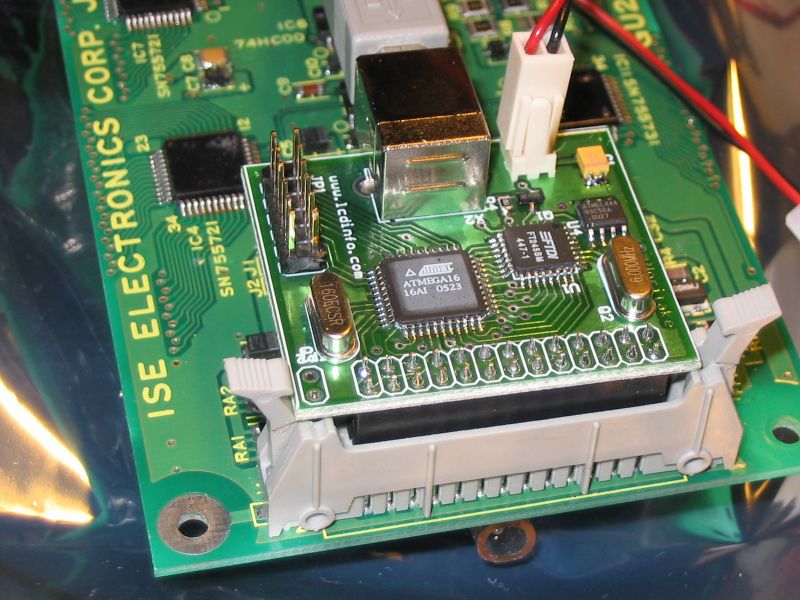

- other models from GU256x64-3xx series

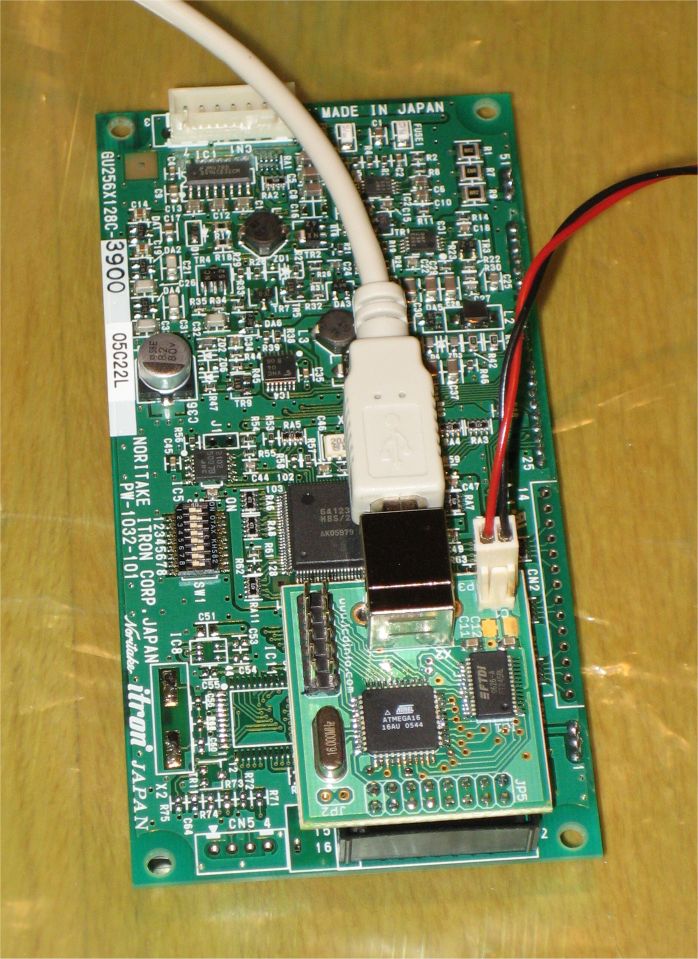

Another board for the 3900 series
Discussed here for example
ADS Graphics Client Plus
- StrongARM 206 MHz
- 32 MB SDRAM
- 32 MB Flash
- LCD controller
- PCMCIA (compact flash cards, wireless cards, IDE hard disk, etc)
- 3 serial ports
Comes with a Linux source distribution from the board manufacturer including drivers for the peripherals on the board.
Also included is instructions for installing the toolchain and getting started with the board.
U-Boot can be used as an alternative bootloader in addition to the
original bootloader for convenient TFTP booting during development.
Compared to the full spec board these boards are missing some components from the PCB:
- VEE generation for passive displays
- CAN controller
- CAN controller add-on (parts 5 € or assembled)
- QVGA interface board (including VEE) + display. 4-bit grayscale.

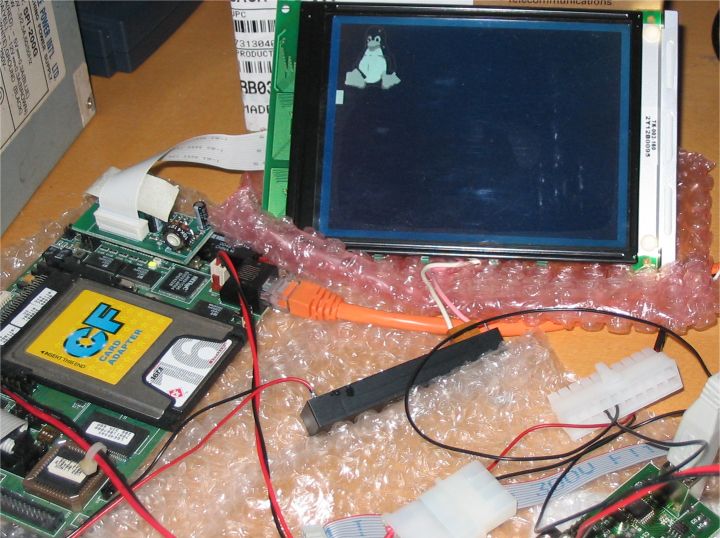

These are seen in the pictures. Comes with a preconfigured Linux image
to immediately see the display working.
- Bluetooth add-on
ADS board + 320x240 display with interface board as seen in the picture 100 €
Items are in Finland and shipping
is possible to pretty much anywhere. For smaller items airmail shipping
for 3 € is possible to most countries.
